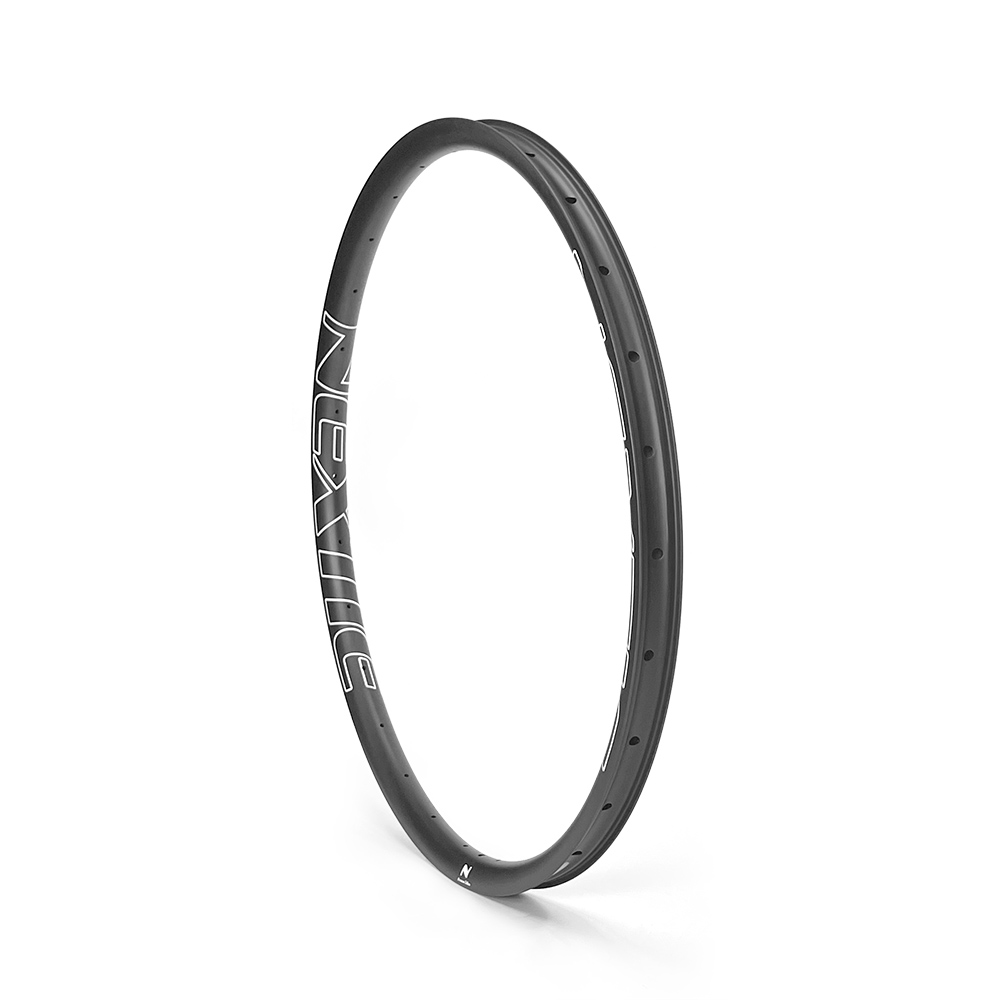

[Premium] 29" Carbon Fiber Mountain Bicycle Cross Country Rim 34mm 350g

Basic

• Code: NXT29UL34
• Rim Type: Clincher & Hookless
• Materials: Toray T700 + T800 Carbon Fiber (Premium)
• Tubeless Compatible: This function allows you to run tubeless perfectly.
• Drillings: 24, 28, 32, 36
• Warranty: 2 Years

Specification

• Size: 29"
• BSD (Bead Seated Diameter): 622mm
• ERD (Effective Rim Diameter): 580mm

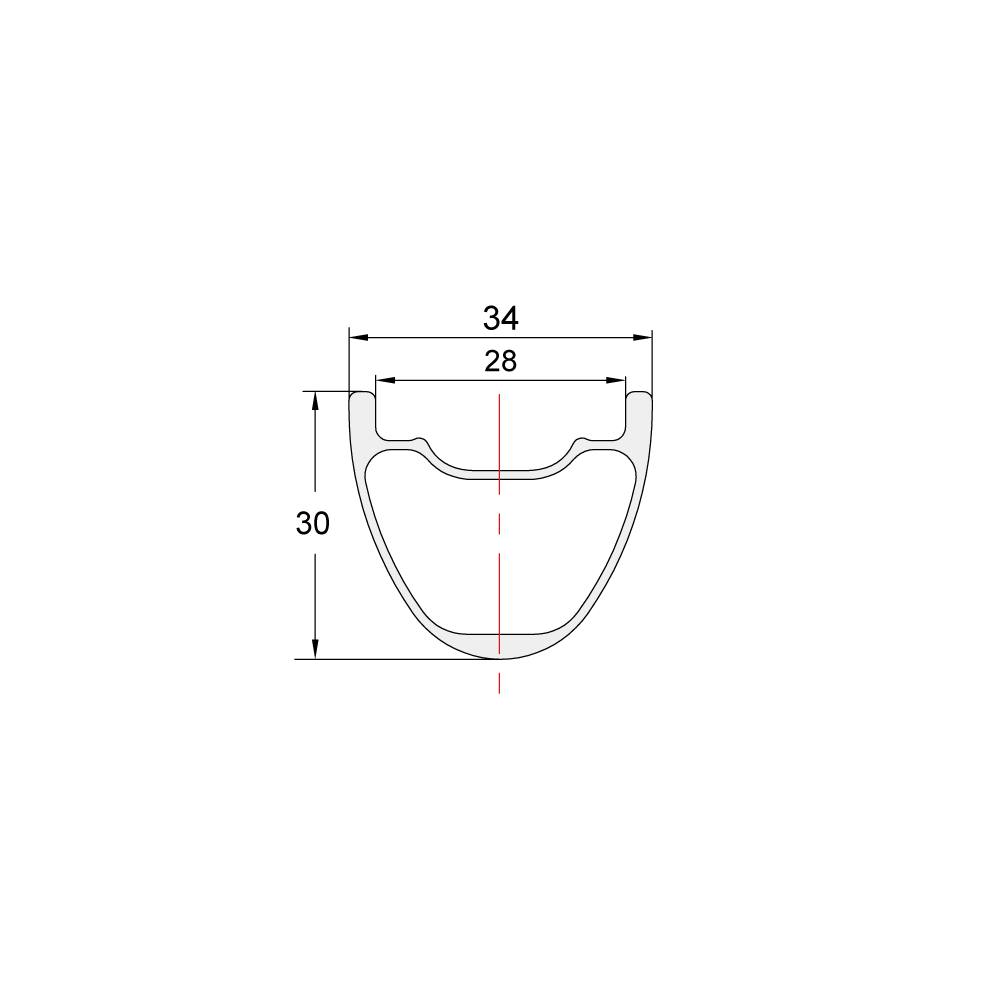

• External Wide: 34mm
• Internal Width: 28mm
• Rim Height: 30mm
• Weight: 350g
• Valve Hole Diameter: 6.5mm
• Spoke Holes Diameter: 4.5mm / 2.3mm
• Assembly Hole Diameter: 7.5mm

Recommendation

• Spoke Tension: 130kgf
• Tire Size: 1.75" ~ 2.4"
• Tire Pressure: 20 ~ 45psi
• Load Limit (One Wheel): 120kg

Appearance

• Weave: UD
• Finish: Matte / Glossy

Application

• application: XC

AIO System

• AIO System: The AIO (all in one) system is another technical method to strengthen the rim by using long and continuous carbon fiber layers to wrap into rim. For only one overlap of a layer circle, not only can it keep the original continuous strength of carbon fiber layers, but also it saves weight;
