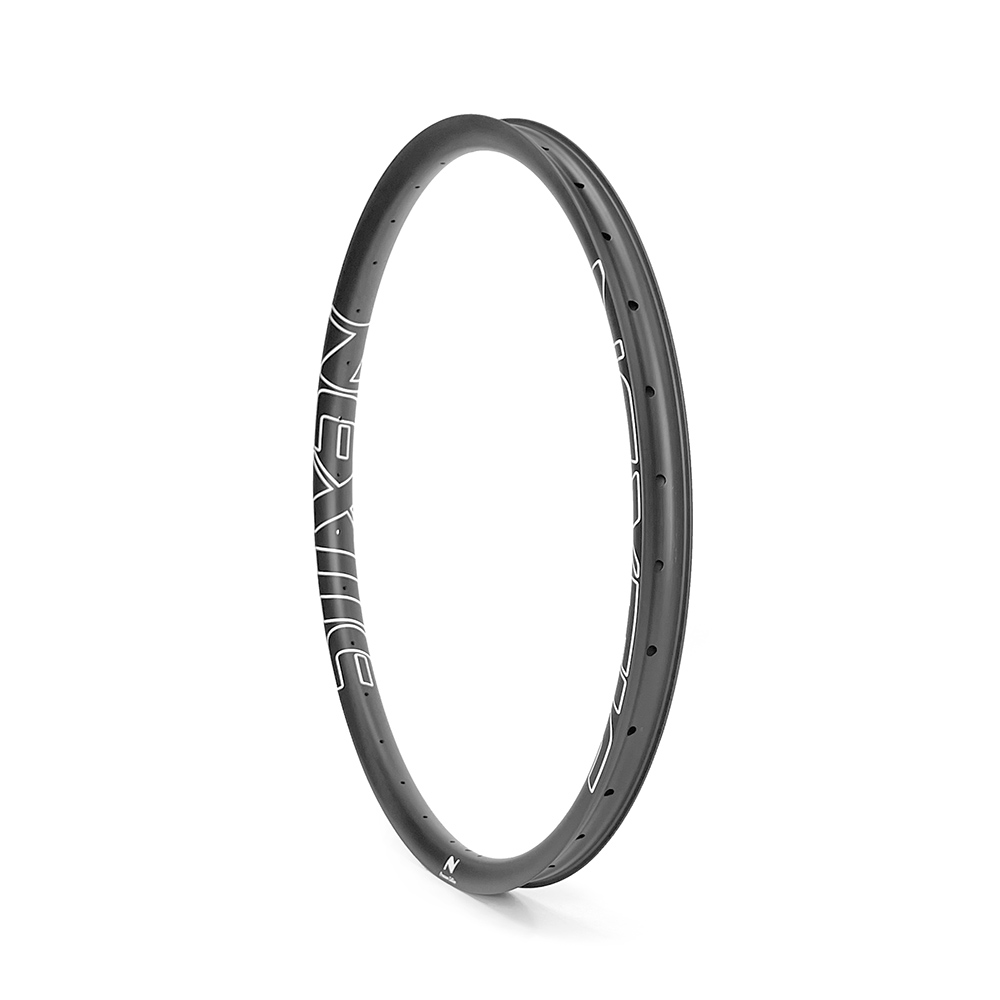

[Premium] 29" Carbon Fiber Mountain Bicycle All Mountain Rim 40mm 410g

Basic

• Code: NXT29XM40
• Rim Type: Mountain Bike (Clincher, Hookless)
• Materials: Toray T800 + T700 Carbon Fiber (Premium)
• Tubeless Compatible: Yes
• Drillings: 28, 32
• Warranty: 3 Years

Specification

• Size: 29"
• BSD (Bead Seated Diameter): 622mm
• ERD (Effective Rim Diameter): 581mm

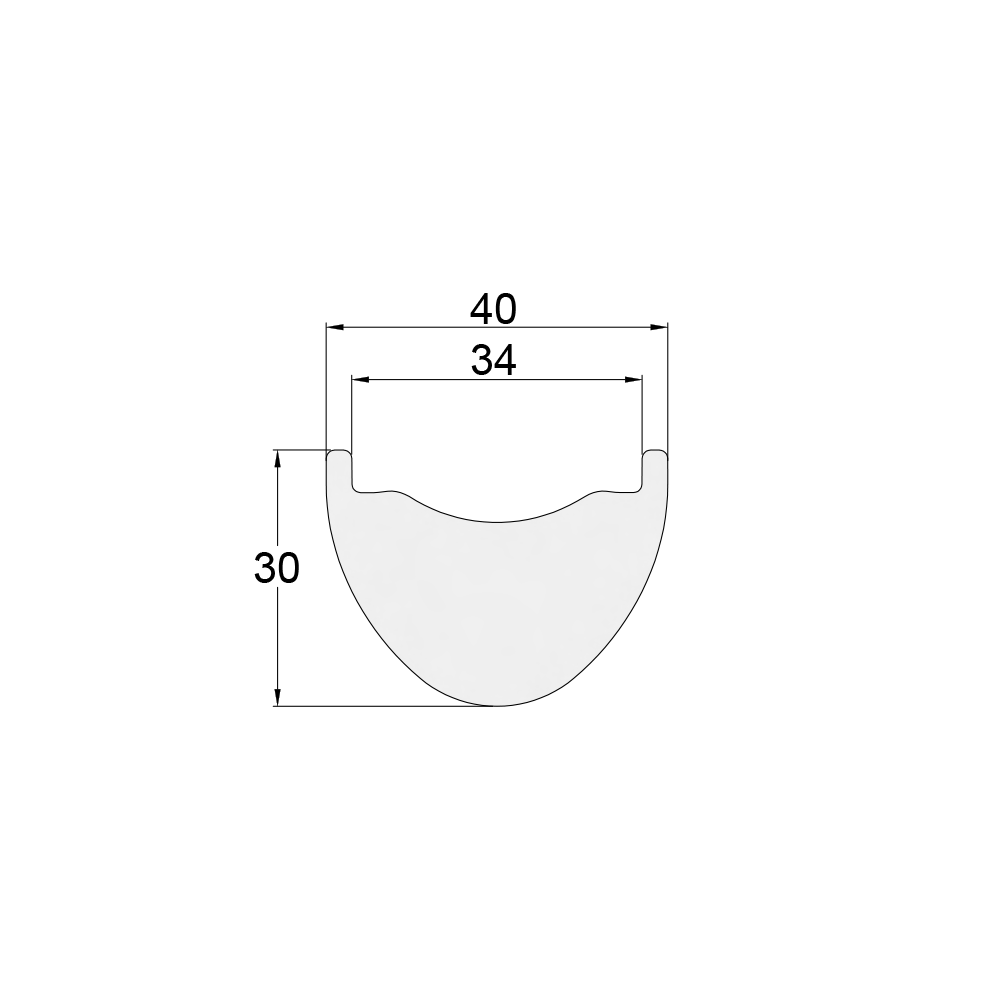

• External Width: 40mm
• Internal Width: 34mm
• Rim Height: 30mm
• Weight: 410g
• Valve Hole Diameter: 6.5mm (Presta)
• Spoke Holes Diameter: 4.5mm
• Spoke Holes Angle: ± 6°
• Assembly Hole Diameter: 7.5mm

Recommendation

• Spoke Tension: 100 ~ 130kgf
• Tire Size: 2.3" ~ 3.0"
• Tire Pressure: 19 ~ 32psi
• Max System Weight: 130kg

Appearance

• Carbon Weave Availability: UD / 3K / 12K
• Finish: Free Coating / Matte / Glossy

Application

• application: Trail / AM / Enduro / Freeride
