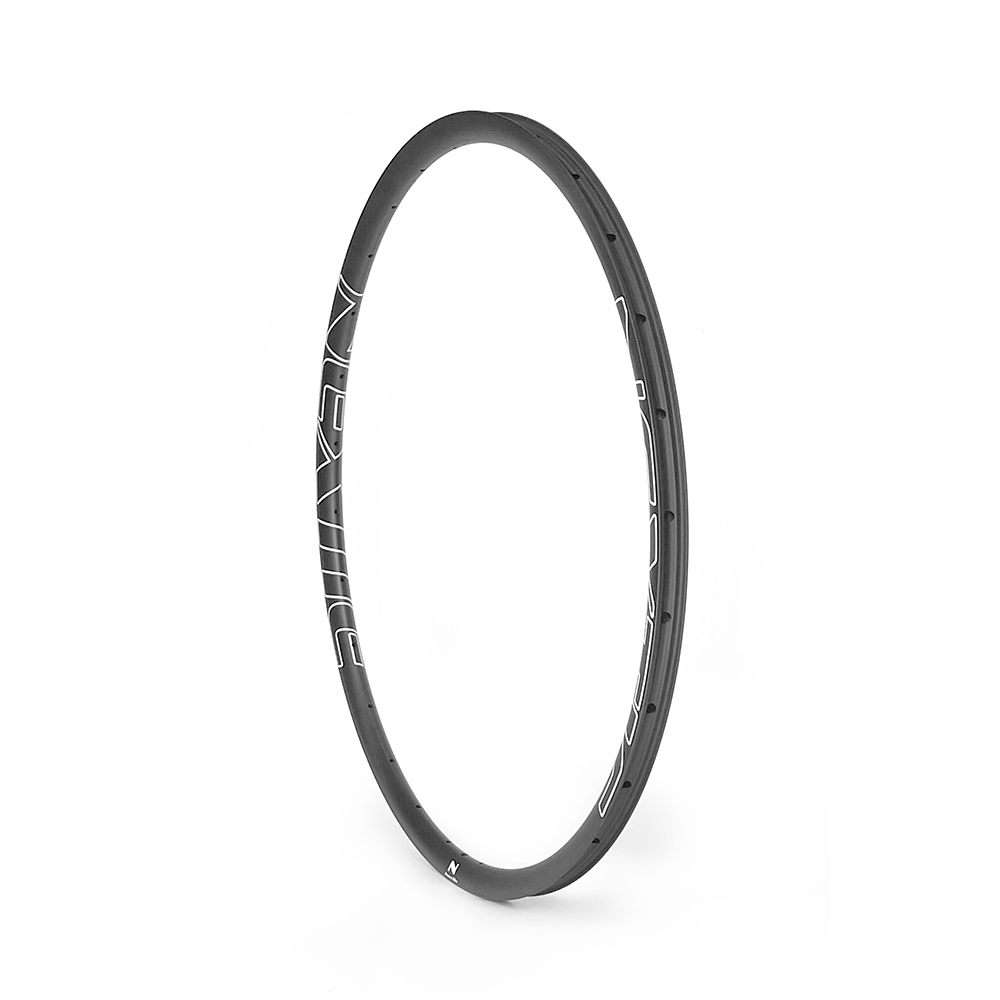

[Premium] 27.5" Carbon Fiber Mountain Bicycle Cross Country Rim 24mm 250g


NXT27XM24U | 250g | Tire 1.25" ~ 1.85"


Basic

  • Code: NXT27XM24U
  • Rim Type: Clincher (Hookless)
  • Materials: Toray T800+T700 Carbon Fiber (Premium)
  • Tubeless Compatible: Yes
  • Drillings: 28, 32
  • Warranty: 2 Years

Specification

  • Size: 27.5" / 650B
  • BSD (Bead Seated Diameter): 584mm
  • ERD (Effective Rim Diameter): 552mm

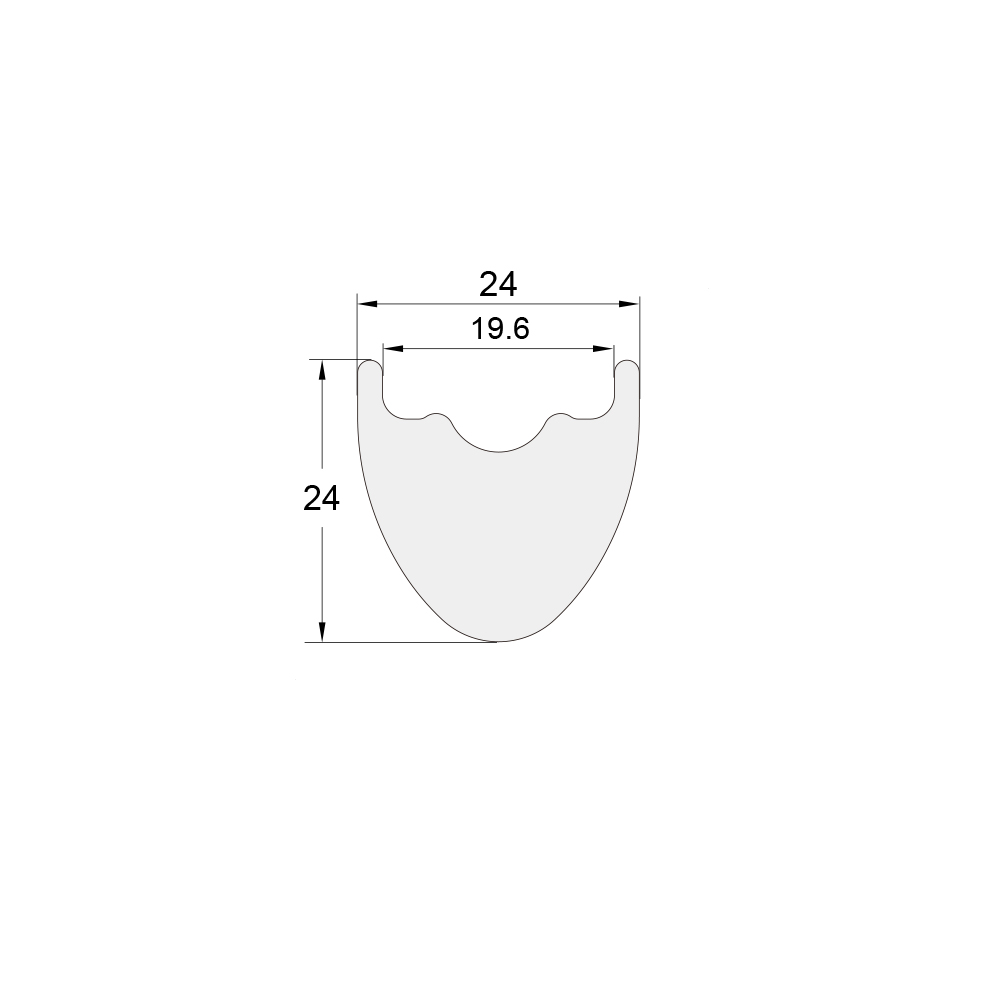

  • External Width: 24mm
  • Internal Width: 19.6mm
  • Rim Height: 24mm
  • Weight: 250g
  • Valve Hole Diameter: 6.5mm (Presta)
  • Spoke Holes Diameter: 4.5mm
  • Spoke Holes Angle: ± 6°
  • Assembly Hole Diameter: 7.5mm

Recommendation

  • Spoke Tension: 75 ~ 100kgf
  • Tire Size: 1.25" ~ 1.85"
  • Tire Pressure: 20 ~ 45psi
  • Load Limit (One Wheel): 85kg

Appearance

  • Carbon Weave Availability: UD
  • Finish: Free Coating / Matte / Glossy

Application

  • application: XC / Marathon / Trail
