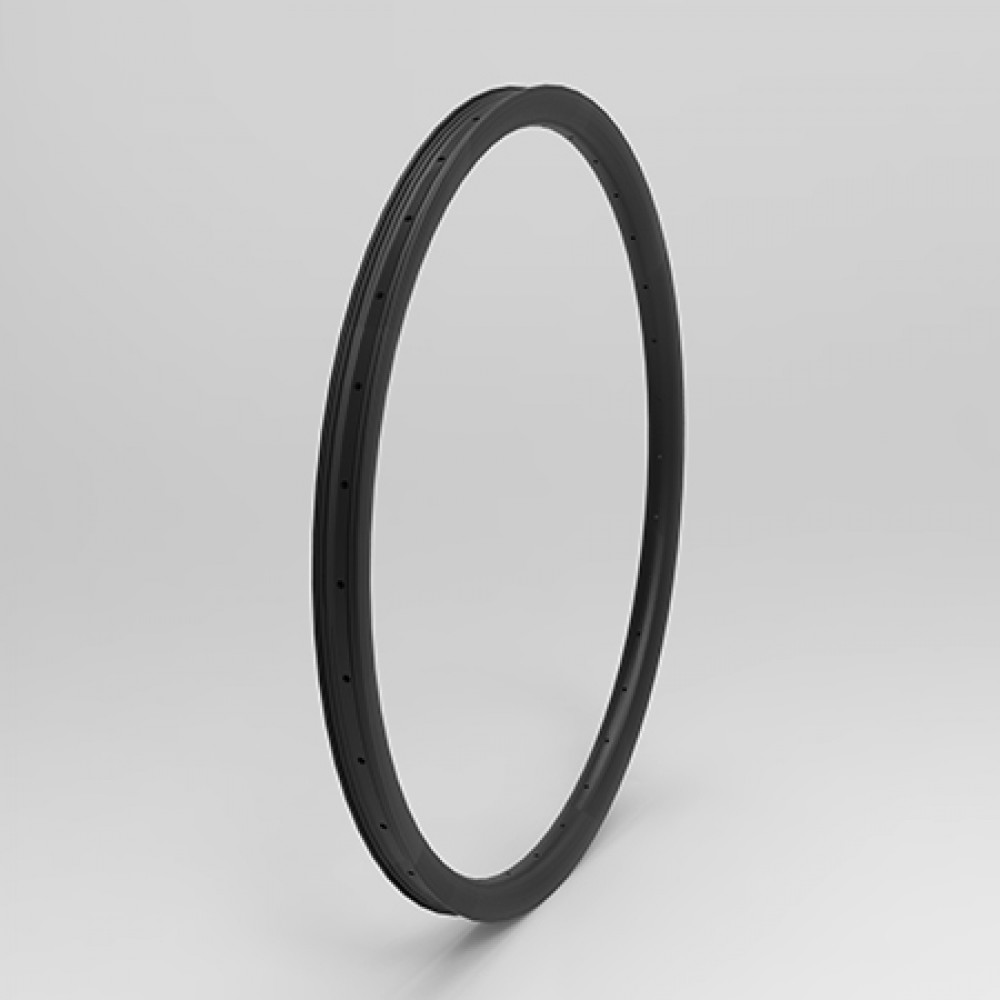

[Standard] 26" Carbon Fiber Mountain Bicycle Rim 35mm 380g

Basic

• Code: NXT26RM35
• Rim Type: Clincher / Hookless
• Materials: Toray T700 Carbon Fiber
• Tubeless Compatible: Yes
• Drillings: 28, 32, 36
• Warranty: 1 Years

Specification

• Size: 26"
• BSD (Bead Seated Diameter): 559mm
• ERD (Effective Rim Diameter): 529mm

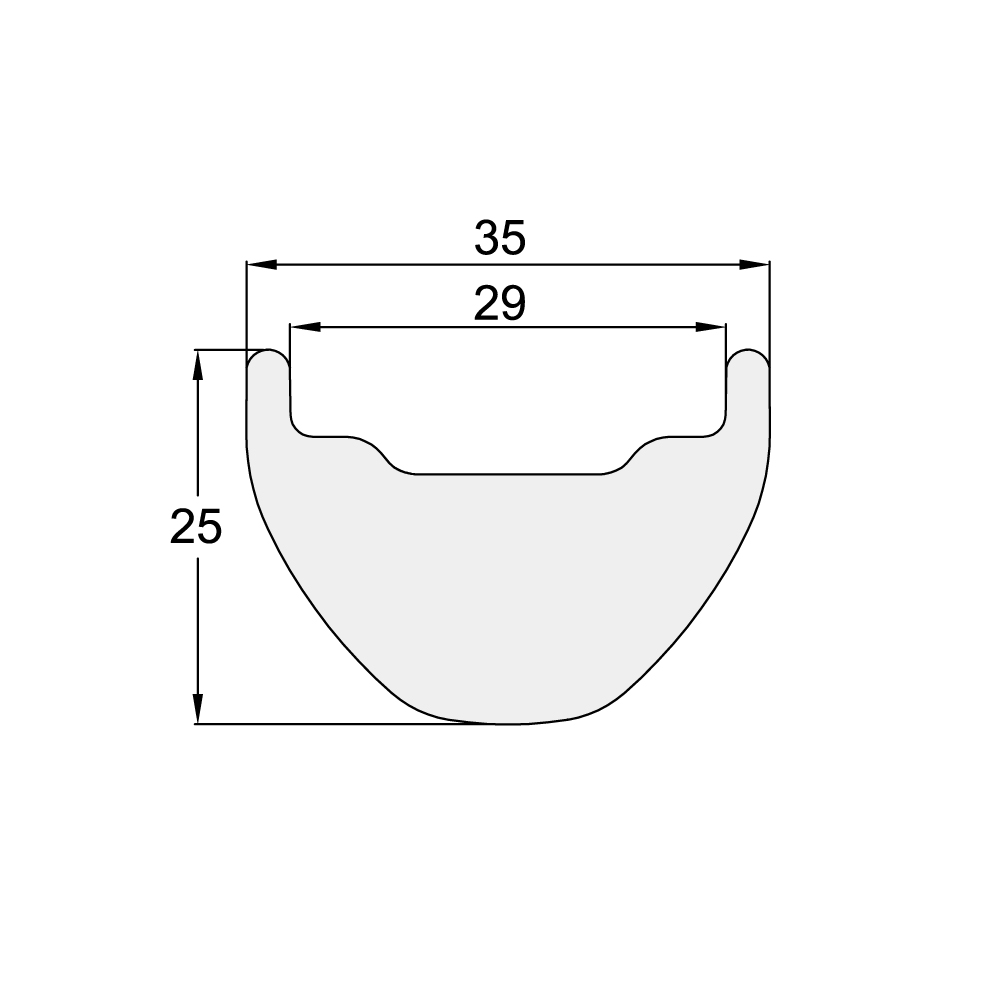

• External Width: 35mm
• Rim Height: 25mm
• Weight: 380g
• Valve Hole Diameter: 6.5mm (Presta)
• Spoke Holes Diameter: 4.5mm
• Assembly Hole Diameter: 7.5mm

Recommendation

• Spoke Tension: 130kgf
• Tire Size: 2.0"~2.55"
• Tire Pressure: 20 ~ 45psi
• Load Limit (One Wheel): 120kg

Appearance

• Weave: UD / 3K / 12K
• Finish: Matte / Glossy

Application

• application: XC / Marathon / Trail / AM / Enduro
