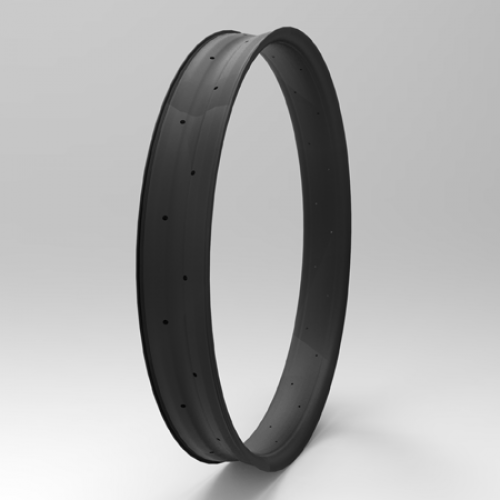

[Snow Dragon] 26" Carbon Fiber Fat Bike Rim 80mm 650g

Basic

• Name: Snow Dragon 26"
• Code: NXT26SD80
• Rim Type: Clincher / Hookless
• Materials: Toray T700 Carbon Fiber
• Warranty: 2 Years

Specification

• Size: 26"
• BSD (Bead Seated Diameter): 559mm
• ERD (Effective Rim Diameter): 528mm

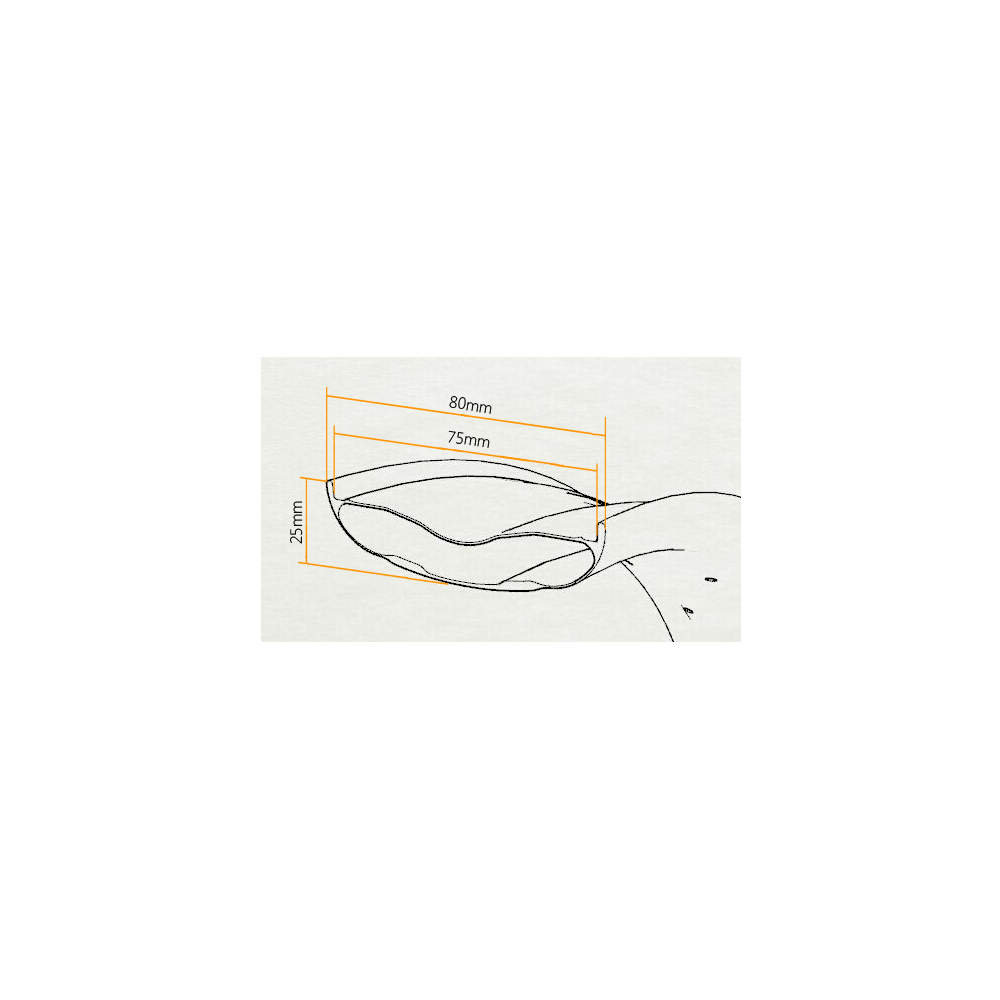

• External Width: 80mm
• Rim Height: 25mm
• Spoke Bed Offset: +/-15mm
• Weight: 650g
• Valve Hole Diameter: 6.5mm (Presta)
• Spoke Holes Diameter: 4.5mm
• Assembly Hole Diameter: 7.5mm

Recommendation

• Spoke Tension: 130kgf
• Tire Size: 3.8"+
• Spoke Nipple Length: 12mm / 14mm
• Tire Pressure: 25psi
• Load Limit (One Wheel): 180kg

Appearance

• Weave: UD / 3K / 12K
• Finish: Matte / Glossy

Application

• application: Trail / Dirt / Enduro / Snow / Sand / Bogs / Desert / Mud
