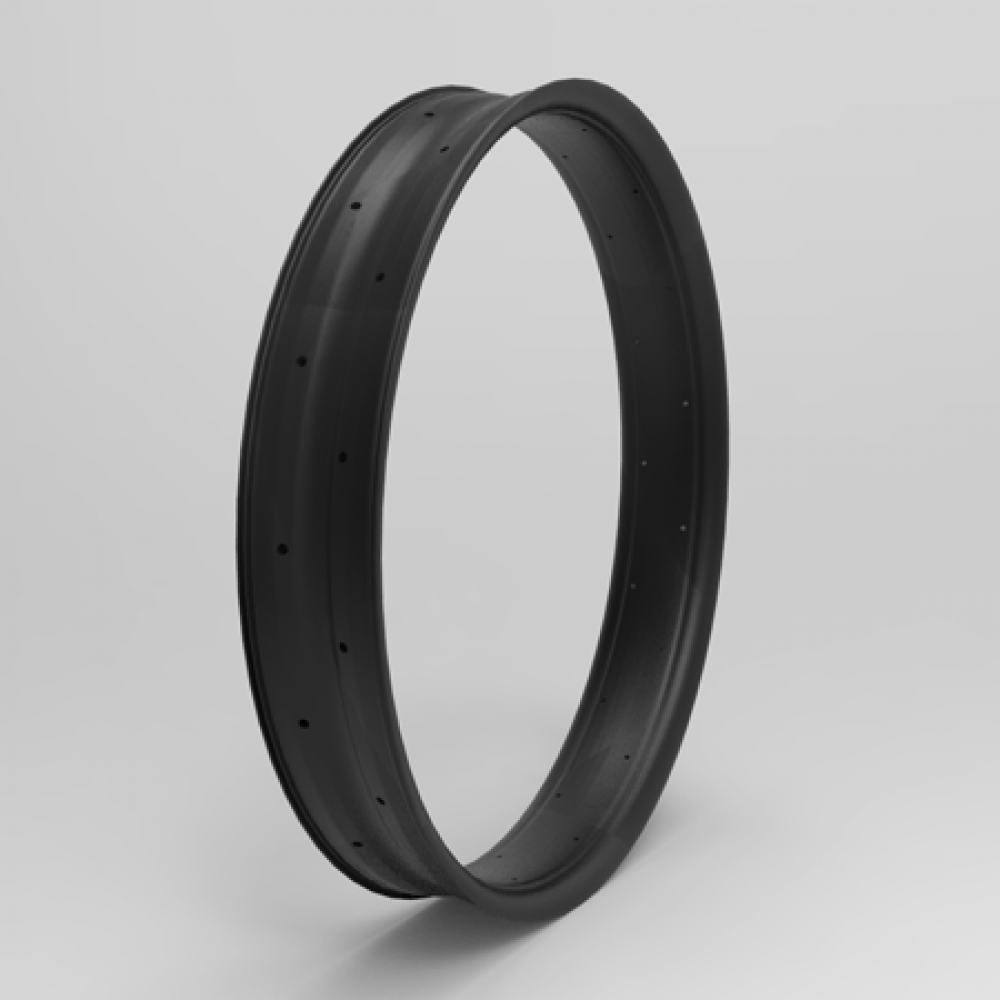

[Kylin] 26" Carbon Fiber Fat Bike Rim 100mm 750g


26-100mm | 25mm Depth | 750g | Hookless | Tubeless | Tire 4.5"+ | [Kylin] | NEXTIE BIKE

Basic

  • Name: Kylin
  • Code: NXT100KL
  • Rim Type: Clincher / Hookless
  • Materials: Toray T700 Carbon Fiber
  • Warranty: 2 Years

Specification

  • Size: 26"
  • BSD (Bead Seated Diameter): 559mm
  • ERD (Effective Rim Diameter): 528mm

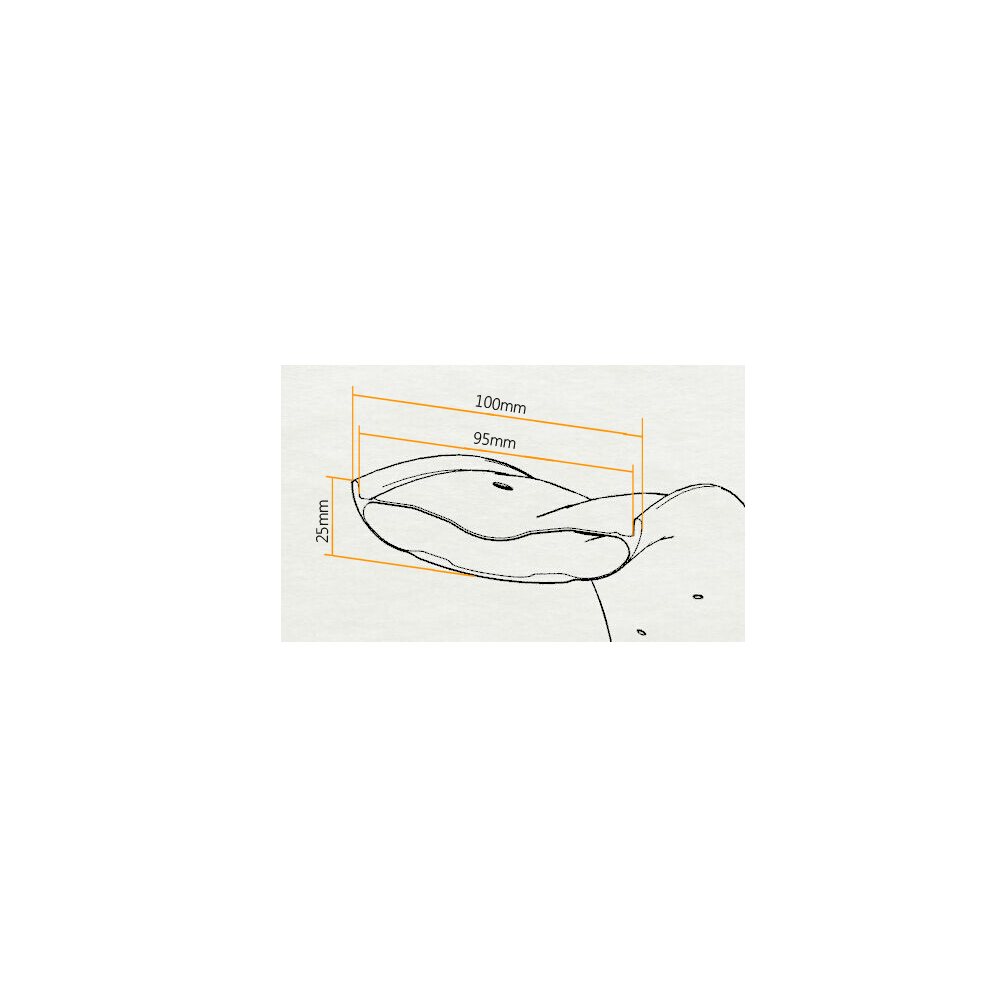

  • External Width: 100mm
  • Rim Height: 25mm
  • Spoke Bed Offset: +/-20mm
  • Weight: 750g
  • Valve Hole Diameter: 6.5mm
  • Spoke Holes Diameter: 4.5mm
  • Assembly Hole Diameter: 7.5mm

Recommendation

  • Spoke Tension: 150kgf
  • Tire Size: 4.5"+
  • Tire Pressure: 25psi
  • Load Limit (One Wheel): 180kg

Appearance

  • Weave: UD / 3K / 12K
  • Finish: Matte / Glossy

Application

  • application: Trail / Dirt / Enduro / Snow / Sand / Bogs / Desert / Mud
