[Road] Carbon Road Bike Frameset


Introduction

Frameset Weight

Frame: 930g (Size 51cm)

Fork: 380g

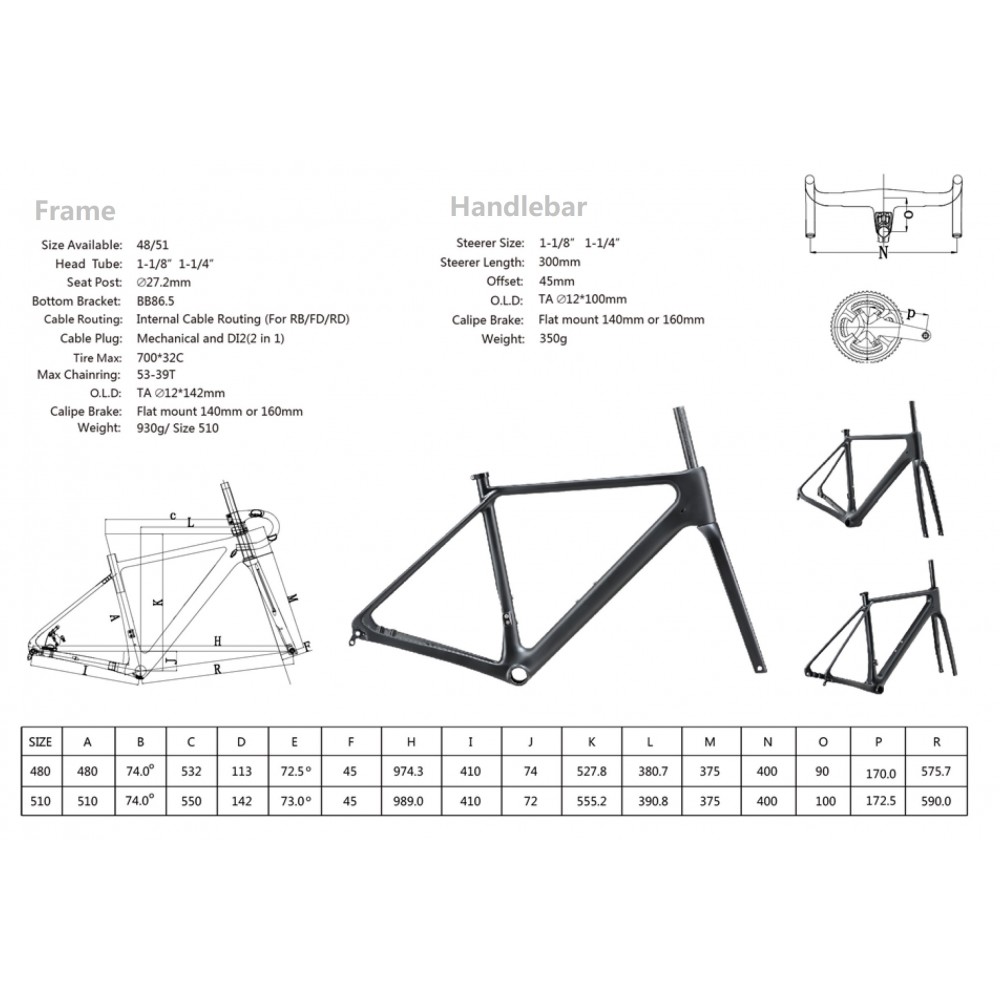

Frame Size Chart

Frame SizeRider Height
48cm160 ~ 170cm
51cm170 ~ 180cm


What's in the Box

1 x Frame

1 x Fork

1 x Headset

1 x Hanger

2 x Thru Axles

Documentation


Basic

  • Code: NXT-R1
  • Materials: Toray T700 Carbon Fiber
  • Warranty: 3 years

Specification

  • Bottom Bracket: BB86.5
  • Brake: Flat mount 140mm or 160mm
  • Cable Routing: Internal Cable Routing (For RB/FD/RD)
  • Handlebar: 300mm
  • Headtube: 1 1/8”-1 1/4”
  • Max Load: 250kg
  • O.L.D: Front 100x12mm, Rear 142x12mm
  • Offset: 45mm
  • Seat post: 27.2mm
  • Size: 48/51cm
  • Tyre clearance: Max: 700*32C
  • Cable Plug: Mechanical and DI2 (2 in 1)
  • Max Clainring: 53-39T
  • Weight: frame 930g / Size 510, handlebar 350g

Application

  • application: Road
