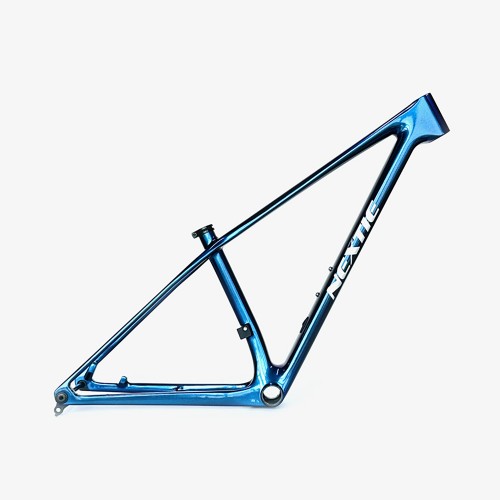

Carbon Mountain Bike Frame

Basic

• Code: NXT-M1
• Materials: Carbon Fiber
• Warranty: 3 years
• Includings: Frame + Rear Axle + Headtube bearings.

Specification

• Bottom Bracket: BB92
• Brake: Disc Brake (160mm)
• Brake and Derailleur line: Internal Cable Routing (For RB/FD/RD)
• Headtube: 1 1/2” - 1 1/2”
• Max Load: 200kg
• Seat post: 31.6mm

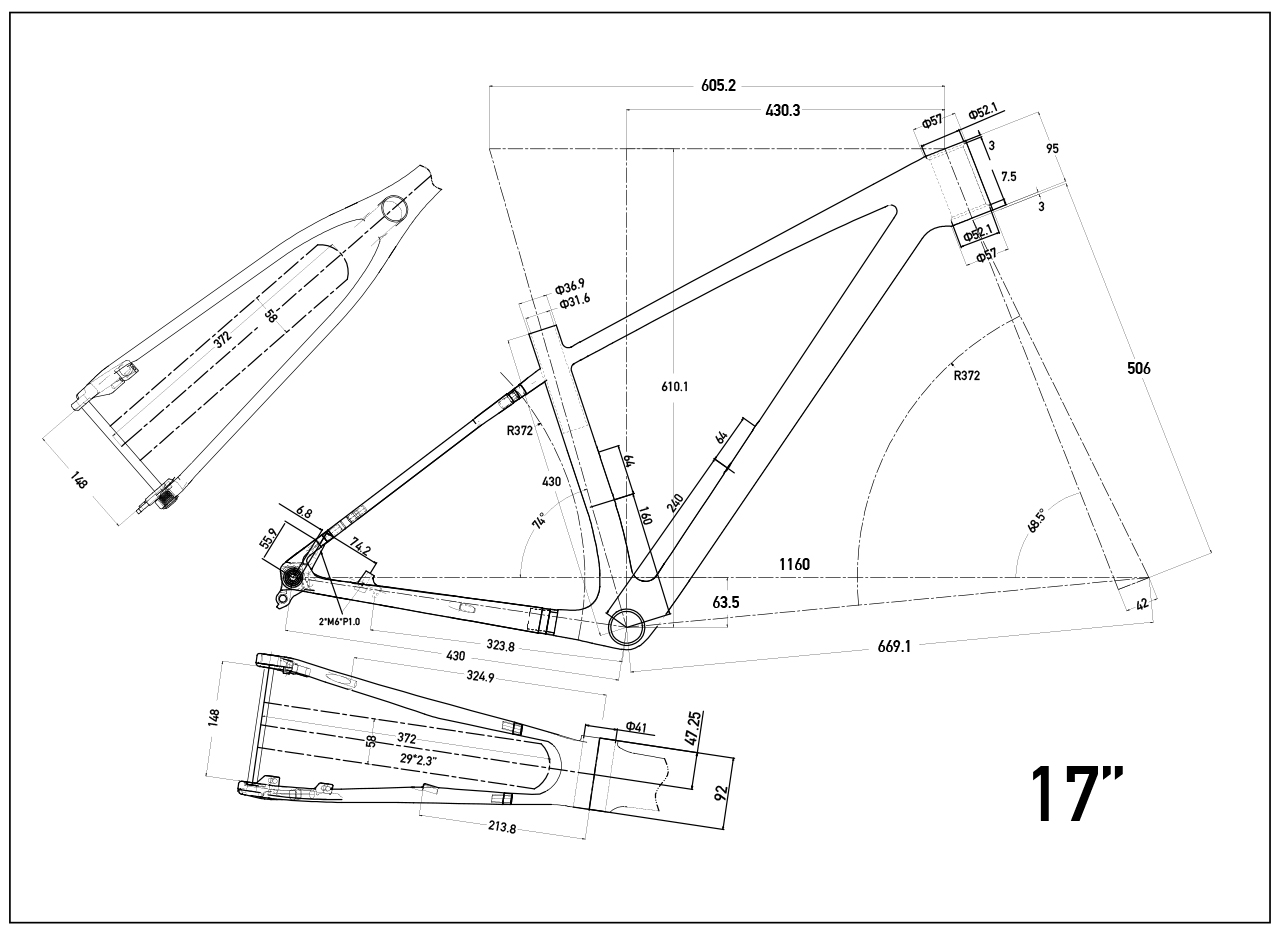

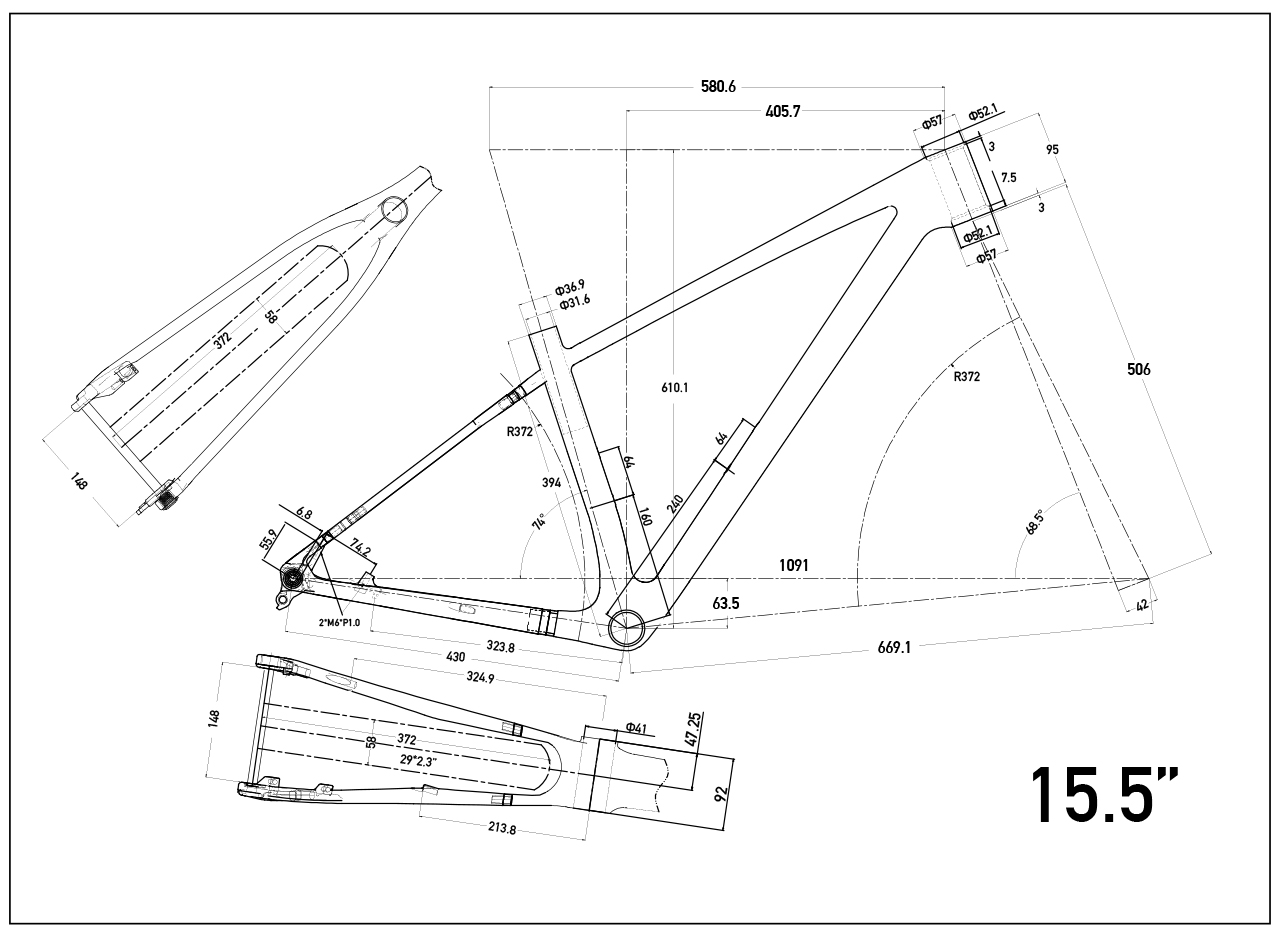

• Size: 15.5", 17"
• Tyre clearance: 29" x 2.3"
• Wheel Axle: Rear 12x148mm
• Weight: 1145g (17" carbon black), 1245g (17", Aurora Blue)

Application

• application: Mountain
